Full Digital Ultrasound System

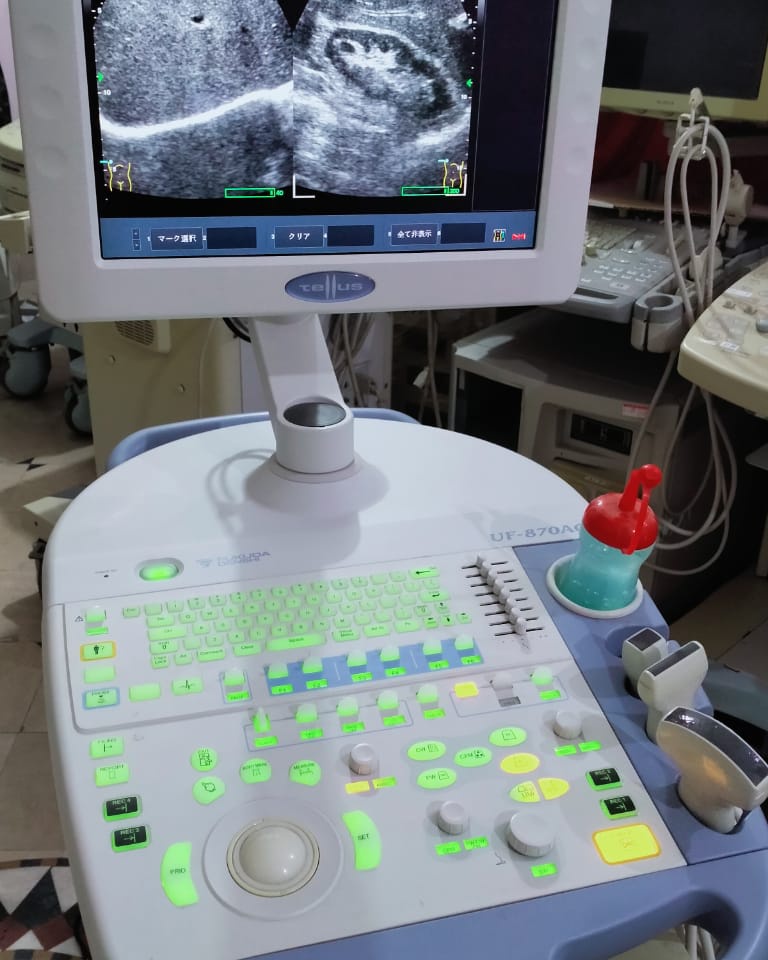

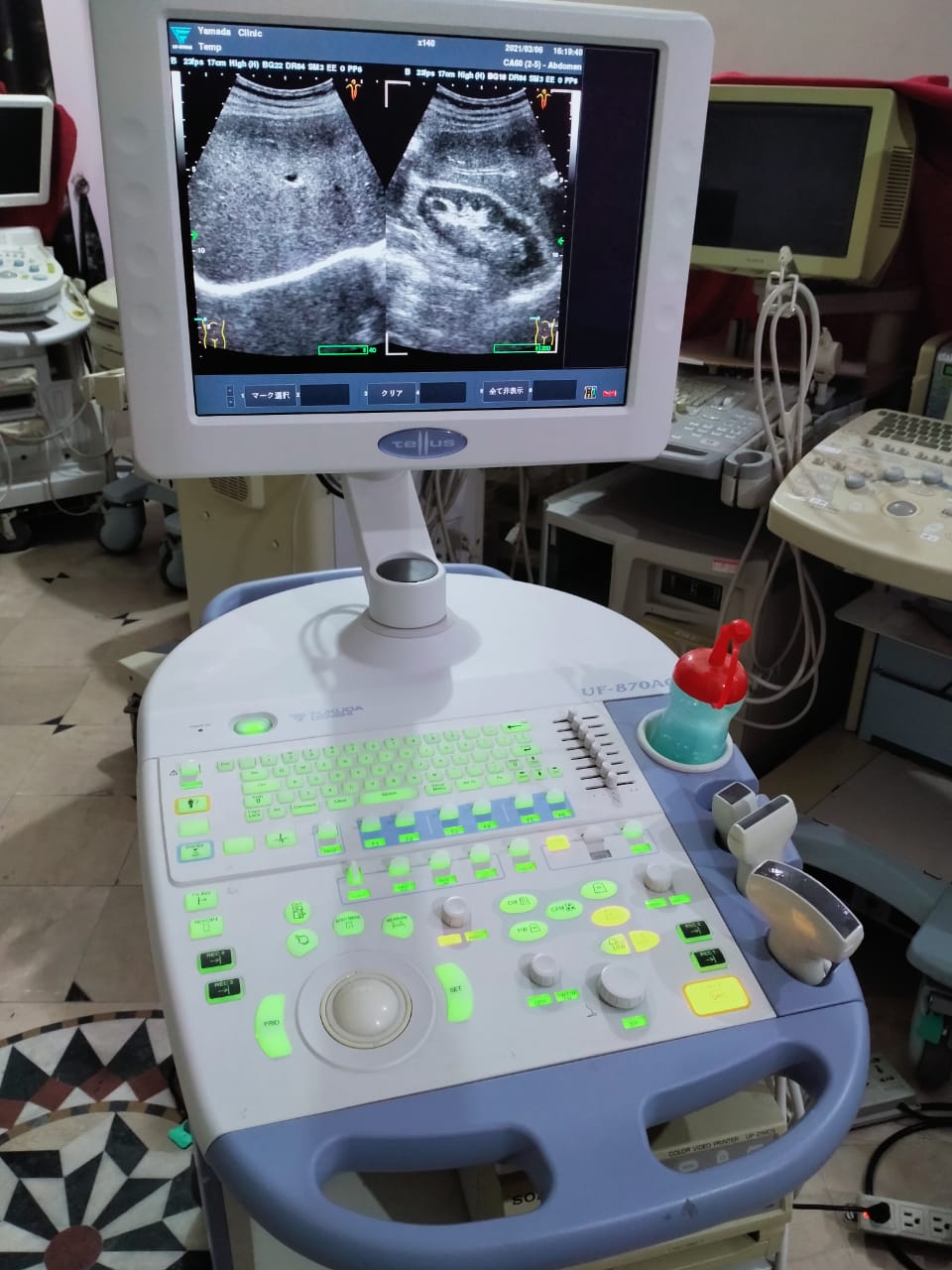

UF-870AG

An Intelligible & Premium Ultrasound System
By featuring Fukuda Denshi’s original F-AG technologies in its compact body,
the UF-870AG ensures excellent image quality and high operational efficiency.
With a variety of advanced functions, this revolutionary full digital
ultrasound system initiates a new high-quality imaging environment.

Advanced Image

Advanced Function

Advanced Interface



The built-in digital beam former provides 4 x 64 channels, enabling

simultaneous reception of the images in four directions. It also realizes an

ever high frame rate and improves the scanning line density.

Increasing the number of receiving signals improves

the color Doppler frame rate.

This new function enables the adjustment of the frequency

to an optimum for field depth and applications.

This ensures reduced examination time and improved workflow.

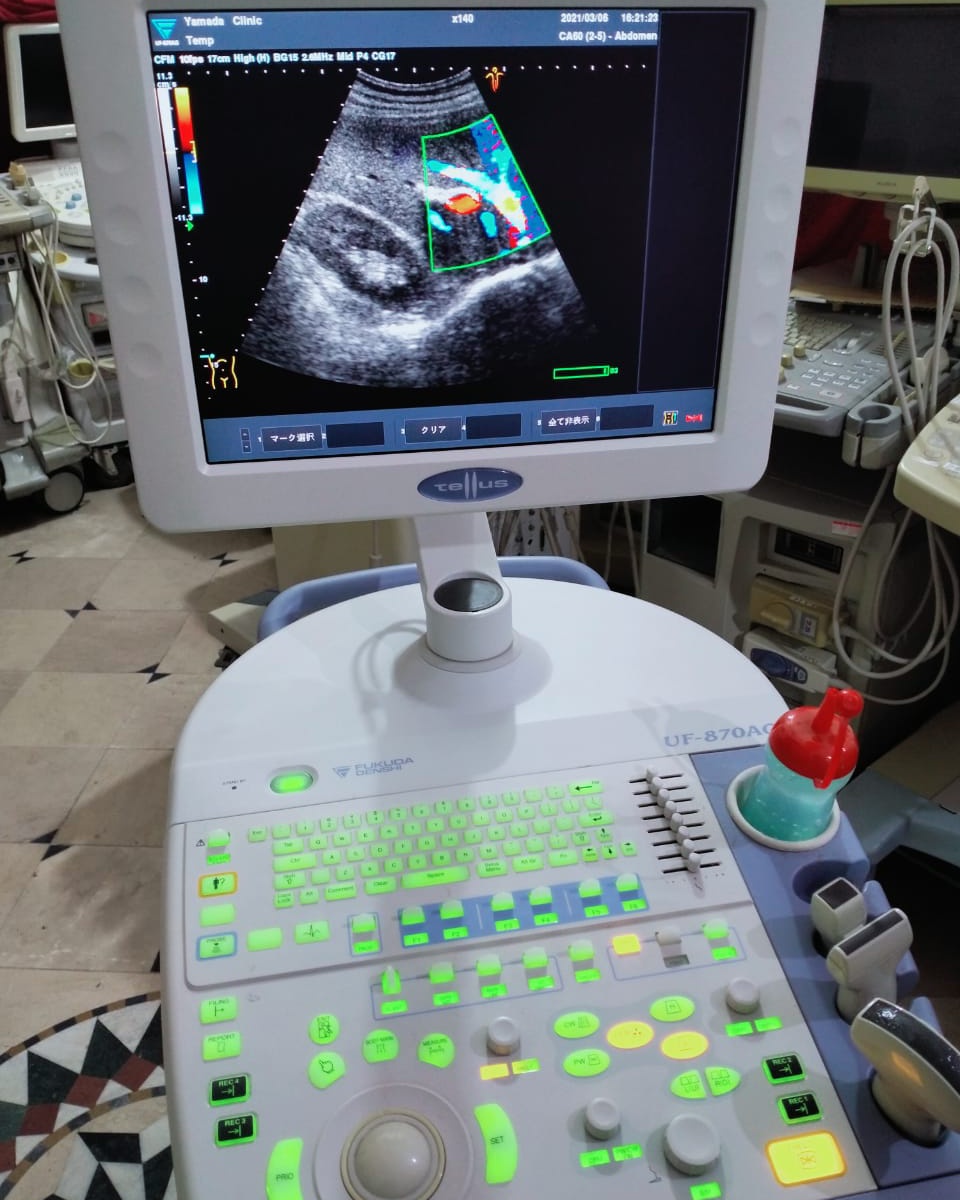

The digital beam processing enables the detection of delicate blood

flow (none missed).

And by mixing every received signal, a Doppler color flow mapping

of sensitivity 1.5 times higher than a conventional system is produced,

thereby increasing diagnostic efficacy.

Optional functions are available in abundance, enabling

configuration of a system that exactly satisfies the need

of each individual user. Selection of optional functions

enables the user to use the UF-870AG as a system dedicated

to cardiovascular or abdominal/vascular application.

And also, it incorporates all the optional functions, which

can make the UF-870AG a multifunctional ultrasound system.

The UF-870AG incorporates a TFT LCD color monitor developed

for the ultrasound system that requires ultra-wide angle of

visibility and high brightness. This ensures to display highly

precise images in either bright or dark environment. The LCD

monitor position can freely be adjusted in any directions.

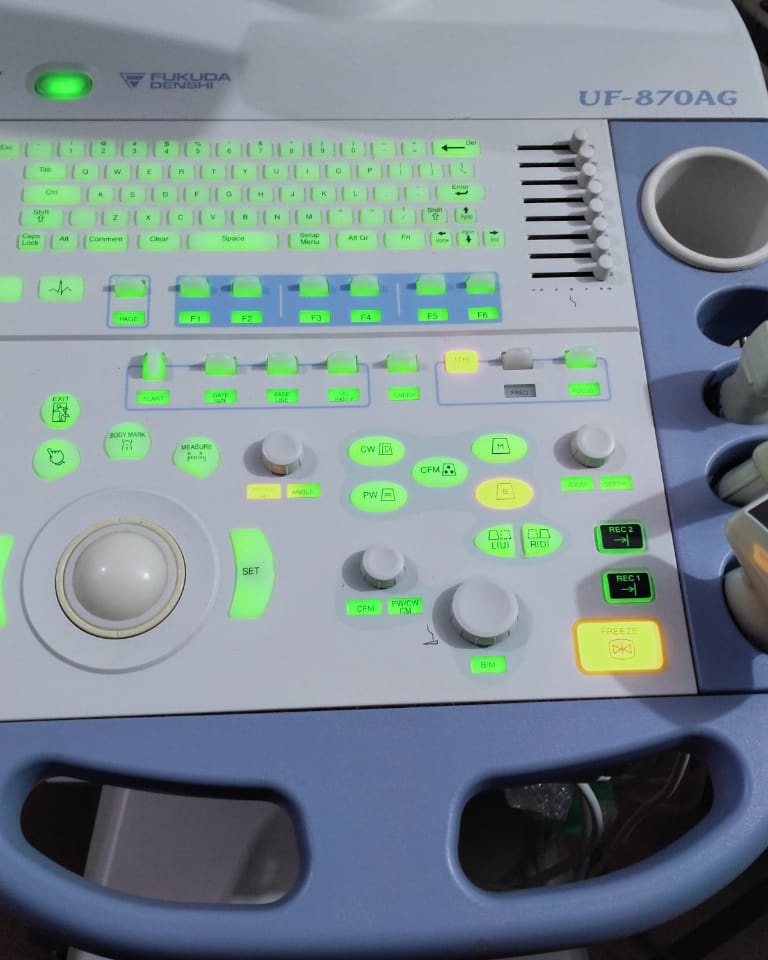

The operation panel can be slid left-right. Thus, an optimum

examination environment is made available in a limited space.

Keys are ergonomically laid out and properly labeled to

enable quick and efficient examination.



Network (option)

DMAS(Data Management and Archiving System)

Advanced Diagnosis

PC

For smooth examination flow

Network system enabling

total data management

Patient data management

Patient information, measurement results and ultrasound images are saved in the hard disk,

enabling easy data search and comparison with past data.

MWM

Movie data and still images

Still images

DICOM server

Printer

Reporting

A template is provided to enable the user to easily

compile the report in A4 size. Any PDF image can

simply be dragged into the report while comment(s)

can easily be entered. Also, a laser printer can be

directory connected to the UF-870AG to print out the

report





Display Unit 15-inch, High-Resolution, Ultra-wide view, TFT LCD monitor

Scanning methods Electronic Phased array / Convex array / Linear array

Beam Former Digital, Multi-Beam Processing

Frame Rate Max 224 frame/sec (depend on system setting)

Operation Mode B (2D) mode, M mode, PWD mode, CFM mode, Power Doppler mode, Triplex mode,

Color M mode, CWD mode (option), Anatomical M mode (option), Doppler Tissue Imaging (option)

B-mode Focus method Transmitting: 1 step (8 types selectable)

Receiving: continuous dynamic focus

Display Depth 2 ~ 30cm (depending on probe)

Frequency 2 types selectable and AFA (Automatic Frequency Adjustment)

Tissue Harmonic Imaging on/off, 2 types frequency selectable (depending on probe)

Color Scale Imaging 8 types B color selection

Display Control up/down, right/left, view angle variable (depending on probe)

M-mode Display mode Moving Bar

Sweep Speed 4 steps (2 to 8 sec/screen)

Color Scale Imaging 8 types M color selection

PWD mode Display Mode PWD mode, High PRF mode, Spectral Doppler Tissue Imaging (option)

Sweep Speed 4 steps (2 to 8 sec/screen)

Velocity range ± 1KHz to ± 20KHz

CFM mode Display Mode Velocity mode, Power mode, Doppler Tissue Imaging (option)

Velocity range ± 250Hz to ± 20KHz

Color Map Velocity: 4types, Power: 4types, DTI: 4types

CWD mode (option) Display method CWD mode, Pencil CWD mode

Sweep Speed 4 steps (2 to 8 sec/screen)

Velocity range ± 1KHz to ± 48KHz

Imaging Control GAIN 60 ~ 100dB, 32 steps

STC 8 steps, slide volume

Dynamic Range 48 ~ 96dB, 8 steps

Echo Enhance 8 steps

Frame Correlation 4 steps

Post Process 8 steps

Line Density 2 steps

Color Scale Imaging 8 types

ECG synchronized freeze Dual Time

Probe Connection 3 active connectors, 1 Pencil probe connector

Biological Signal (option) ECG, PCG

Measurements and

General, Cardiology, Vascular, Urology, OB/GYN measurement, with Report Function Calculations

Image Filing 600 frames Cine memory (max 3000 frames: Long Cine option)

USB memory, 160GB HDD, CD-R/RW

Network LAN, DICOM (option)

General Power AC100 ~ 240V ± 10%, 50/60Hz

Power Consumption Approx. 850VA

External Dimensions (W) 480 × (D) 826 × (H) 1315~1505mm

Weight Approx. 100kg

• Option Probe Lineup

• Biopsy Needle Guide Holders



• FUT-SA162-5A FUT-1-5PA FUT-3-8PA
• FUT-CA602-5A FUT-4-9MC FUT-TVA114-7A
• FUT-LA385-12A
• FUT-PAD60C for FUT-CA602-5A
• FUT-PAD50B for FUT-5-12L50
• FUT-PAD16A for FUT-SA162-5A
• FUT-PVG11A for FUT-TVA114-7A
• 652-014 for FUT-4-9MC
• 612-085 for FUT-LA385-12A
• FUT-5-12L50
• FUT-3-8TEM
• FUT-PEN2 FUT-PEN4 FUT-PEN8o Convex
• Linear
• Software Options
• Name Description
• UF-870AG-CWD CW Doppler
• UF-870AG-CPG Cardiac package (Tissue Doppler & Anatomic M-mode)
• UF-870AG-SCU DICOM store SCU
• UF-870AG-MWM DICOM modality worklist
• UF-870AG-STE Stress echo package
• UF-870AG-LCL Long cine option



• Other Options



• Name Description
• OA-293 Footswitch
• UF-800XTD-CMG Cable manager
• UF-870AG-RTY Recorder tray
• UF-870AG-ECG ECG unit
• MA-300 PCG microphone
